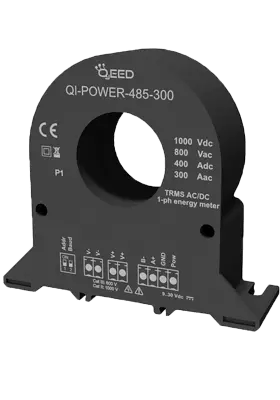

QI-Power-485-300

High Current Modbus Power Analyzer

• Features
• Input 300 Amp 1000 V
• Modbus RTU output
• DIN Rail Mount

• 📄 Datasheet, Manual, and User Guide (PDF)

• Buy Online

• Configuration Software

• Standard Version 800V/50Amps

• Low Voltage Version 100V/50Amps

• 300 Amp Version 100V/300Amps

---

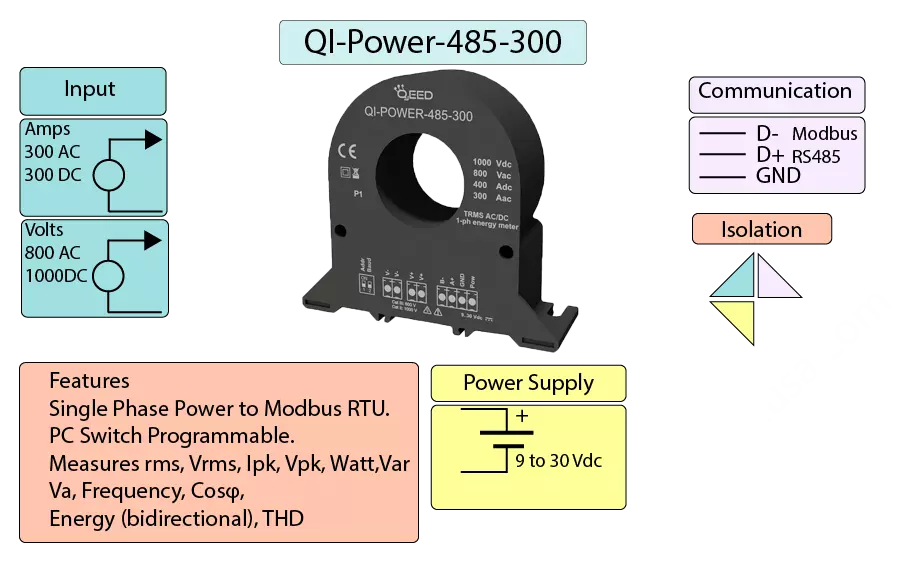

High Current Modbus Power Analyzer

The QI Power 485 300 is a high current power analyzer with a 300Amp and 1000V input and a Modbus RTU output. Not only does the QI Power 485 300 provide Irms, Vrms, Ipk,Vpk, Watt, Var, Va, Frequency, it also supplies energy output which is bidirectional.

• The options are as below.
• QI Power 485 50A AC/DC 800V AC, 1000Vdc.
• QI Power 485 300 300A AC/DC 800V AC, 1000Vdc.
• QI Power 485 LV 50A AC/DC 80V AC, 100Vdc.
• QI Power 485 300 LV 300A AC/DC 80V AC, 100Vdc.

The unit can be mounted on a DIN rail or screwed terminal. Set up is by the free software available from our website. The DIP switch can set up the address and Baud rate. Isolation is provided up to 3000 Volts on the Current input and 4000 Volts on the Voltage input.

QI-Power-485-300

Wiring Connections

Power Supply
Positive	Power
Negative	GND
Voltage Input
Positive	V+
Negative	V-
Modbus Output
Voltage Positive	A+
Voltage Negative	B-
